Thermal Vacuum Chamber

Vibration Test System

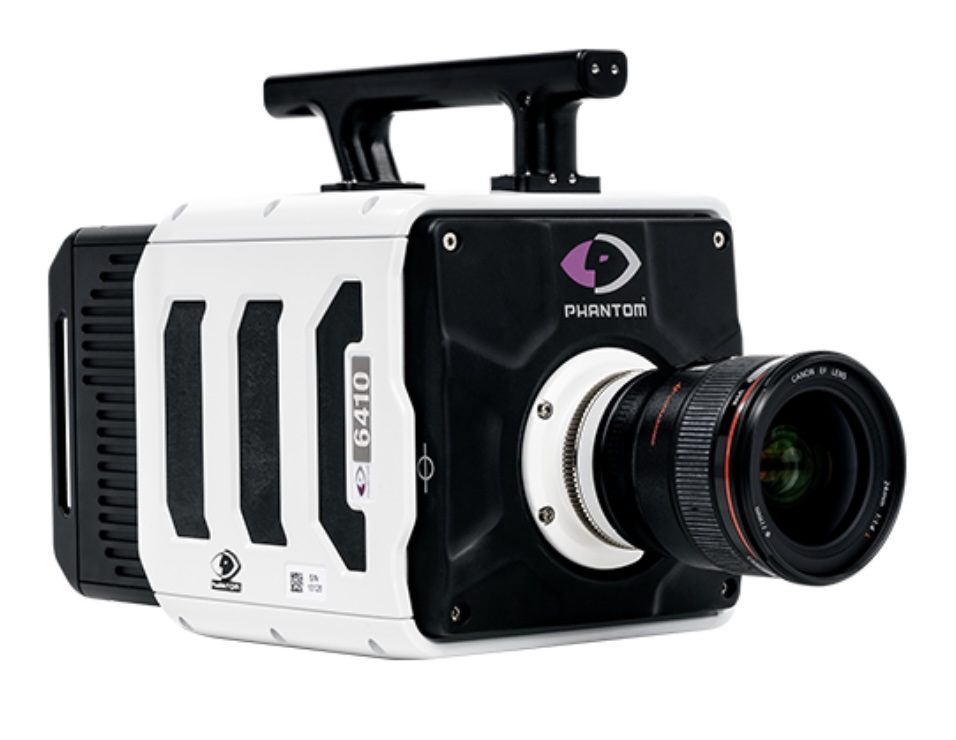

Ultra High Speed Camera (TMX 6410)

Full resolution: 1280 x 800 pixels at 65,900pps
Maximum FPS: 1,560,000 fps
Shutter Speed: minimum 1㎲ standard / 95ns or 38ns with Fast option
Top FPS at Max Resolution: 65,940 fps

Pixel Size: 18.5µm / 37 µm Binned
Bit Depth: 12 bit
Programmable I/O – Assign and define camera signals
Very high native light sensitivity, made possible by the back side illuminated (BSI) sensor
Detailed specification: https://www.phantomhighspeed.com/products/cameras/tmx/6410

Rent is available for SNU community members with the following rules:

• Appointments must be made by email (gjwjdan135 [at] snu.ac.kr)
• One-day fee: KRW 3,000,000
• Renters must sign the rental and usage agreement for TMX6410

If you need to rent for more than a month or more information, please contact Jungmu Hur via email at gjwjdan135 [at] snu.ac.kr.

장비 예약 신청은 위 이메일로 연락해 주시기 바랍니다. (온라인 예약 시스템은 정적 사이트에서 제공되지 않습니다.)
